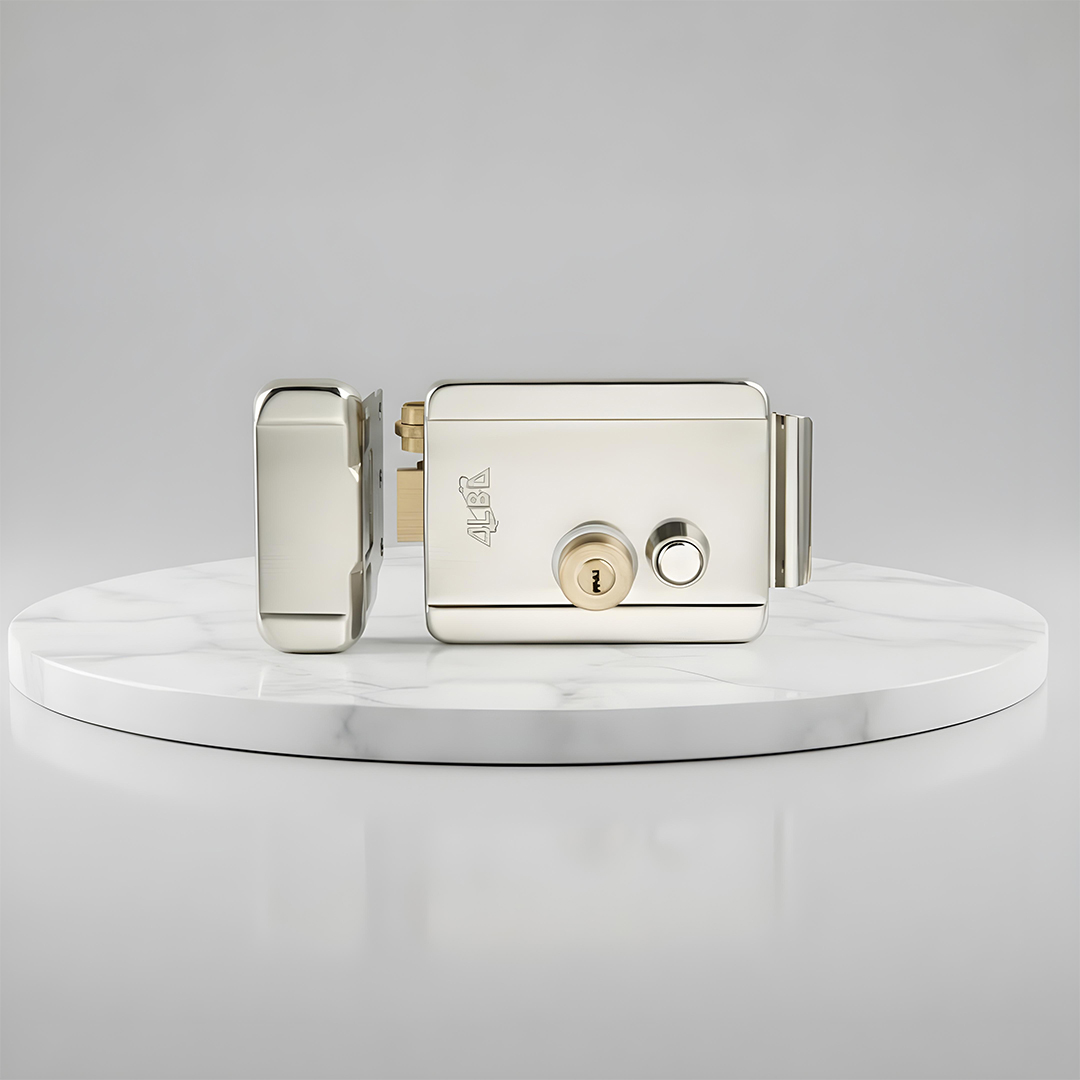

Electro Mechanical Door Lock

FUNCTION

Electro Mechanical Door Lock for In-swing / Out-swing Door
Universal design for Left or right hand doors.
Reliable mechanism with up-to 10 years lifetime operation cycles.
Designed for flush mount wooden, aluminium & steel doors.
Nickel plated lock body, brass cylinders & latch.
Double cylinder for night latch feature.
Includes brass 6 computerised dimple keys.
Auto locks, once door is closed.
Operation mode: Fail Secure Momentary 0.5secs. power to unlock.
Power: 12 - 18 Vac or dc ; 1.5amp

SPECIFICATION

Normal Voltage : 12-18VDC/AC
Work current : 1.5amp
Consumption power : 10W
Electronic status : requires power to open only
Operation time : 0.5 seconds at 12V
Current draw : 0.27A at 12VDC
Pressure in normal : 10000N
Temperature range : -40°C-+50°C
